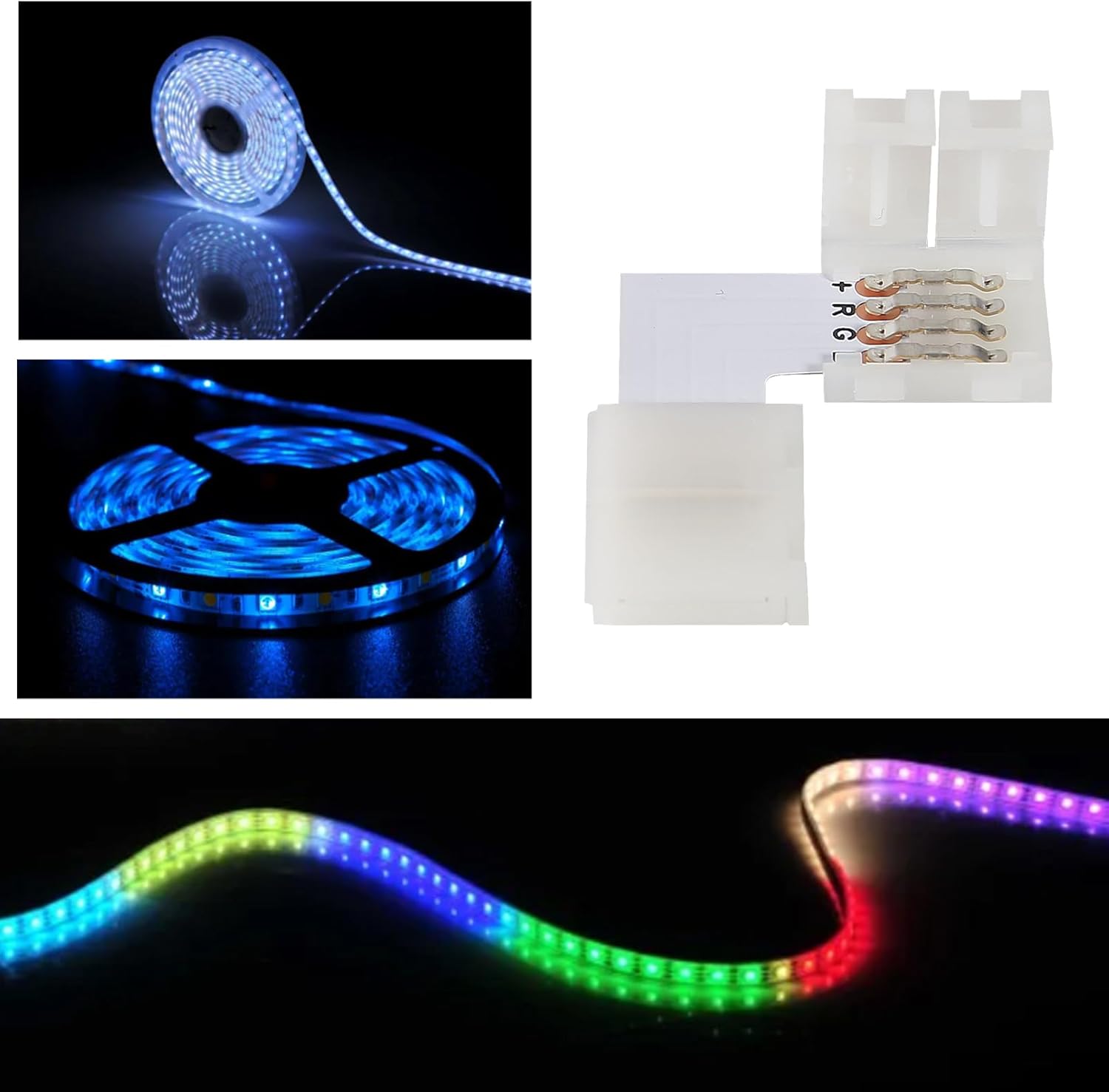

12Pcs LED Strip Connector 4 Pins Connector 10mm/0.39in Wide L Shape Right Angle Connector Lights Corner Adapter Terminal Extension Suitable for Flexible 5050 SMD RGB LED Strip Lights

Specification: Voltage: DC 0-24V Style: L-shaped Suitable for: RGB 5050 LED strip light Width: 10mm (4-PIN) Max Wattage Support: 72W Working Temperature: 0~40℃ Storage Temperature: -20~60℃ Installation : 1.Open the connector using a tool with a thin edge 2.Slide the L sheet under the connectors' prongs 3.Cut the light strip on the copper cutting line; (Note: To avoid electric shock and burn, please turn off the power before cutting and reattaching light strips.) 4.Peel off the back adhesive around the cutting line; (Note: For waterproof light strips, you need to peel off the silicone coating around the soldering line first.) 5.Slide the light strips under the connector's prongs, with the + polarity on both strips aligned; (Note: The + on light strip doesn't have to match the + on the connectors. The connection works as long as the + on both strips are aligned.) 6.Close the clip and set it up Note : The L-shaped PCB board is removable and detachable, please move it to the right place to ensure good electrical conductivity. After you have inserted the LED strip into the connector, before you close the cap of the connector, please slightly pull and push the LED strip to adjust the connection point, until you see the LEDs light up. If the LEDs do not light up, please use your finger to press a little hard on the 2 metal contacts in the connector, until you see the LEDs light up. Package Included: 12 x 4 pin L shape connector

• L-shape flexible LED strip connector 10mm wide, 90 degree, clip-on connection, connects two RGB 5050 flexible strips and strip segments. Makes the connection easy and fast, especially when doing LED strip projects, saves more time
• Led strip connector connect 10mm 4 pin led tape light , any length of light strip can be cut to facilitate the connection, fast and safe connection.
• Led strip light connectors for waterproof and non-waterproof light strips (if your led strip is waterproof drip strip, please peel the silicon from the surface around the soldering area before use.).
• Just slide the light strip under the connector's pins and snap the clip. (Tip: Please do not pry up the metal pins. Doing so may cause poor contact.). No matter in what orders are the RGB+ marked on the connectors, the connection work as long as the ”+” and “-” of the light strips on both sides are aligned.
• 4 pin connector Can realize the diversification in the installation of the light strip, multi-angle extension connection, to solve the installation of the light strip placed in the location of the limitations, also be sure to cut along the suggested line evenly so there is room for a proper connection on each side
