304K Milk Coffee Water Food Grade Peristaltic Pump OEM High Flow DC Stepping Motor Metering Pump (304K/ZLX(24V))
Product details
| Management number | 220357540 | Release Date | 2026/05/03 | List Price | $63.60 | Model Number | 220357540 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

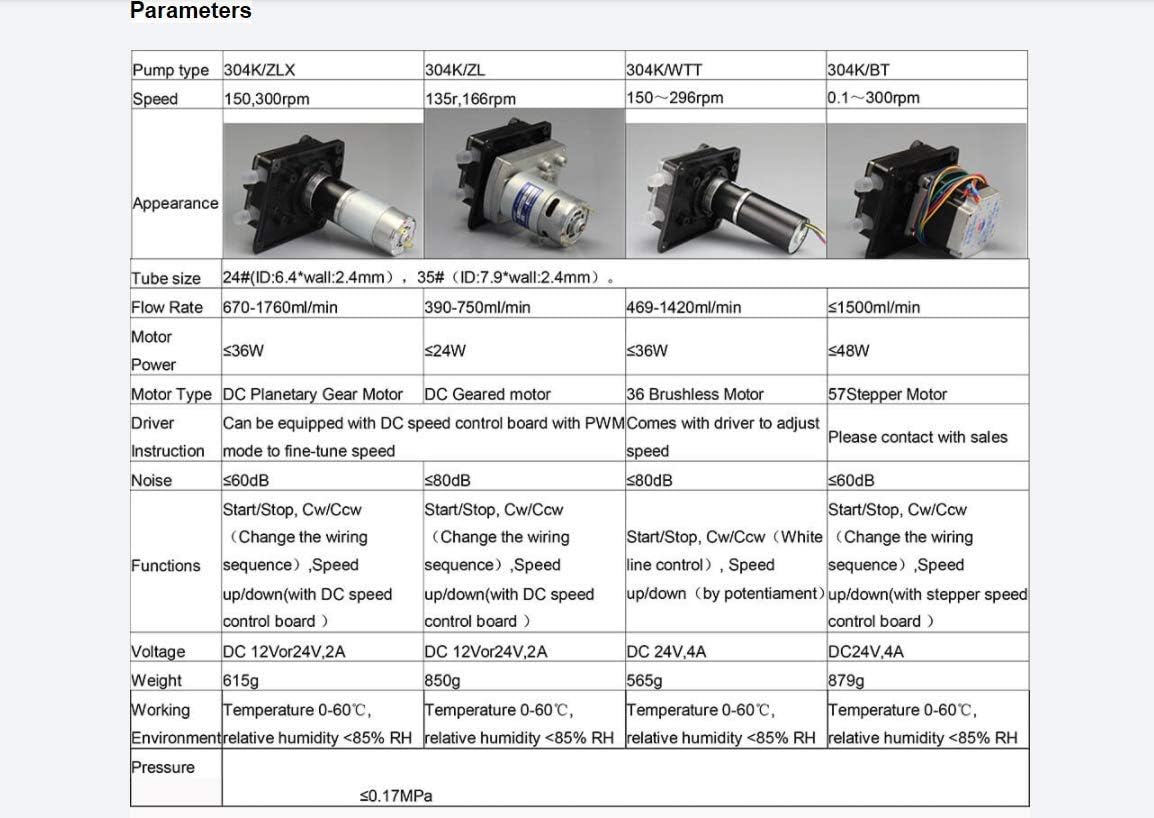

Product Parameters: Product Name: 304K Quick Mounting Panel Peristaltic Pump Product Model: 304K/ZL, 304K/ZLX, 304K/BT Motor Type: DC Geared Motor, DC Planetary Gear Motor, Stepper Motor Weight: 850g, 615g, 879g Operating Environment: Temperature 0°C (no freezing) ~ 60°C, Relative Humidity <85% RH Outlet Pressure: ≤0.17MPa, ≤0.17MPa, ≤0.17MPa Noise: ≤80dB, ≤75dB, ≤60dB 304K/ZL, 304K/ZLX Features: Start/Stop, Forward/Reverse (by reversing wiring sequence), Speed Adjustment (with DC speed control board) 304K/BT Features: Start/Stop, Forward/Reverse (by changing wiring sequence), Speed Adjustment (with speed control board) Primary Materials: Pump cover (polycarbonate), wheel assembly (polyoxymethylene), base (polyamide) Maximum Flow Rate (using clean water): 304K/ZL, 135rpm 24#(ID6.4mm×OD11.2mm) 450ml/min 35#(ID7.9mm×OD12.7mm) 640ml/min 304K/ZL, 166rpm 24#(ID6.4mm×OD11.2mm) 505ml/min 35#(ID7.9mm×OD12.7mm) 750ml/min 304K/ZLX, 150rpm 24#(ID6.4mm×OD11.2mm) 430ml/min 35#(ID7.9mm×OD12.7mm) 605ml/min 304K/ZLX, 300rpm 24#(ID6.4mm×OD11.2mm) 970ml/min 35#(ID7.9mm×OD12.7mm) 1405ml/min 304K/BT, 300rpm 24#(ID6.4mm×OD11.2mm) 1000ml/min 35#(ID7.9mm×OD12.7mm) 1480ml/min Installation Mode: Panel mounting: The pump body comes with a 4-hole mounting plate, no need to add it separately. Standard Configuration: The 304K/ZLX peristaltic pump comes standard with a 300 rpm motor and 35# silicone tubing. If you require a motor with a different speed or tubing specifications, please contact customer service.
- 304K Quick Load ≤1760mL/min Compact pump with high flow rate Tube size:24#、35#
- 304K can load with 4 kinds of motor Coming with mounting panel Mounting size is the same as 203KA
- Standard Features: The 304K/ZLX peristaltic pump comes standard with a 300 rpm motor and 35# silicone tubing.
- Appearance Design Name：quick load peristaltic pump head
- Note: The hose is consumable and prone to wear and tear due to frequent use. Regular inspection and replacement are recommended.
| UPC | 008574099772 |
|---|---|
| Color | Coffee |
| Voltage | 24 Volts |
| Brand Name | JIH |
| Manufacturer | boke |
| Power Source | Corded Electric |
| Material Type | 304K/ZLX(24V) |
| Product Style | Above Ground |
