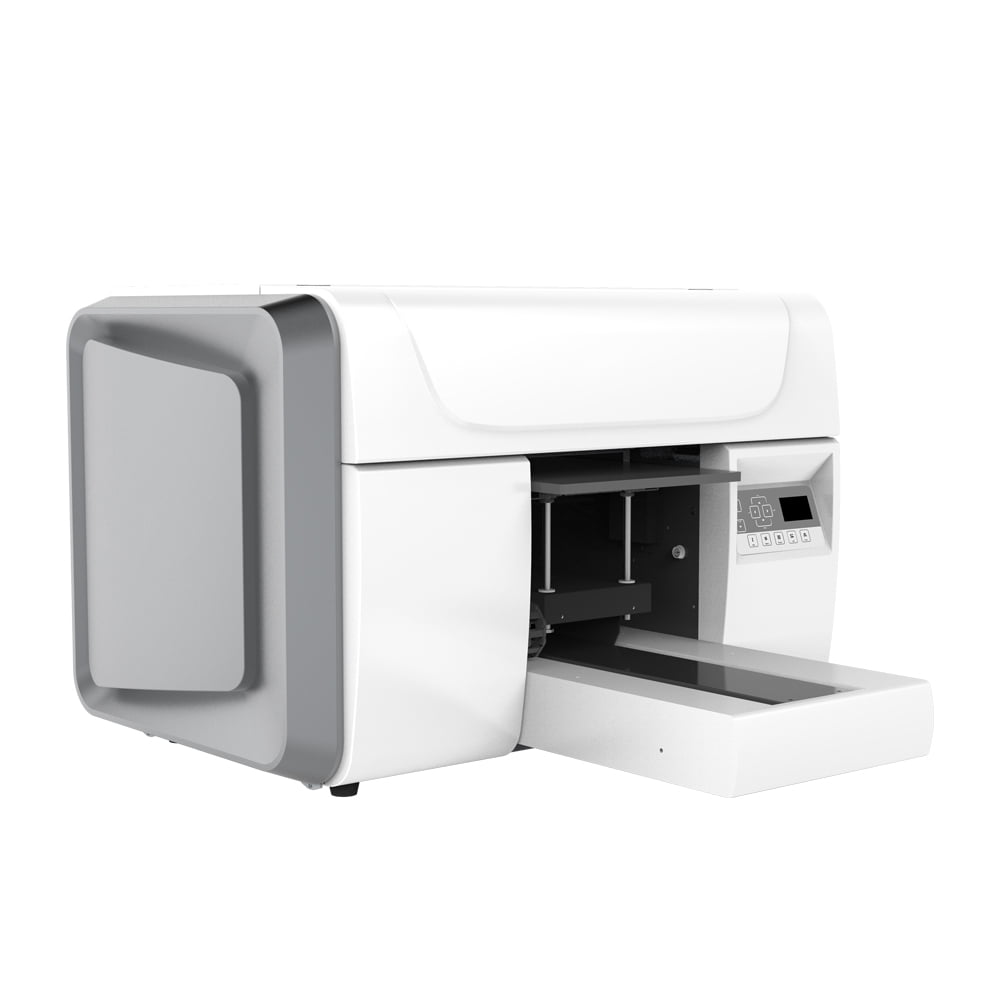

A3 11.7" x 16.5" LED UV / UVDTF Flatbed Printer wih E-pson I3200-S1HD Printhead
Product details
| Management number | 231049406 | Release Date | 2026/06/18 | List Price | $3,439.60 | Model Number | 231049406 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Technical Specs:<br> Print size: 11.69in x 16.53in<br> Print Head: I3200-S1HD x 1pc<br> Nozzle spray force range: 2-3mm(0.0787in-0.0118in)<br> Number of nozzle: 3200 (Individual)<br> Distance between nozzles: 1/300inch<br> Numbers of nozzle rows: 8<br> Maximum number of supported ink colors: 8<br> Effective print width: 300npi/1 list, 600npi/2 list, 1200npi/4 list<br> Droplet ejection performance(Droplet volume and ejection frequency):<br> 2 levels of grayscale 5 pl (43.2KHz)<br> 3 levels of grayscale 6, 12.5 pl (21.6KHz)<br> 4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)<br> Print height: 0-85mm(0-3.34in)<br> Ink type: Environmental UV curing ink<br> Print version: White and color and varnish print as same time<br> Print mode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK<br> RIP Software: Future Rip<br> Print speed: 0.28-3sqm/h<br> Highest print solution: 720 x 1200dpi<br> Connection method: Network cable<br> Graphic format: Tiff, Jpg, Eps, Pdf, Png<br> Printer dimension(L x W x H): 39.37 x 35.51 x 23.31in<br> Net Weight: 132.28lbs<br> Packing size(L x W x H): 44.09 x 40.16 x 30.71in<br> Gross Weight: 176.37lbs<br> Power: AC220 / AC110V, 50-60HZ, 1 phase; 140W,1.3A(110V)/0.6A(220V)<br> Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%
- The resolution can reach 1200 dpi, and it can produce up to 8-color output.
- Compact, less foot print.
- Humanized design operation panel, convenient and fast operation.
- Various functions, support flat and roll printing.
- Simultaneous output of white, color and varnish.

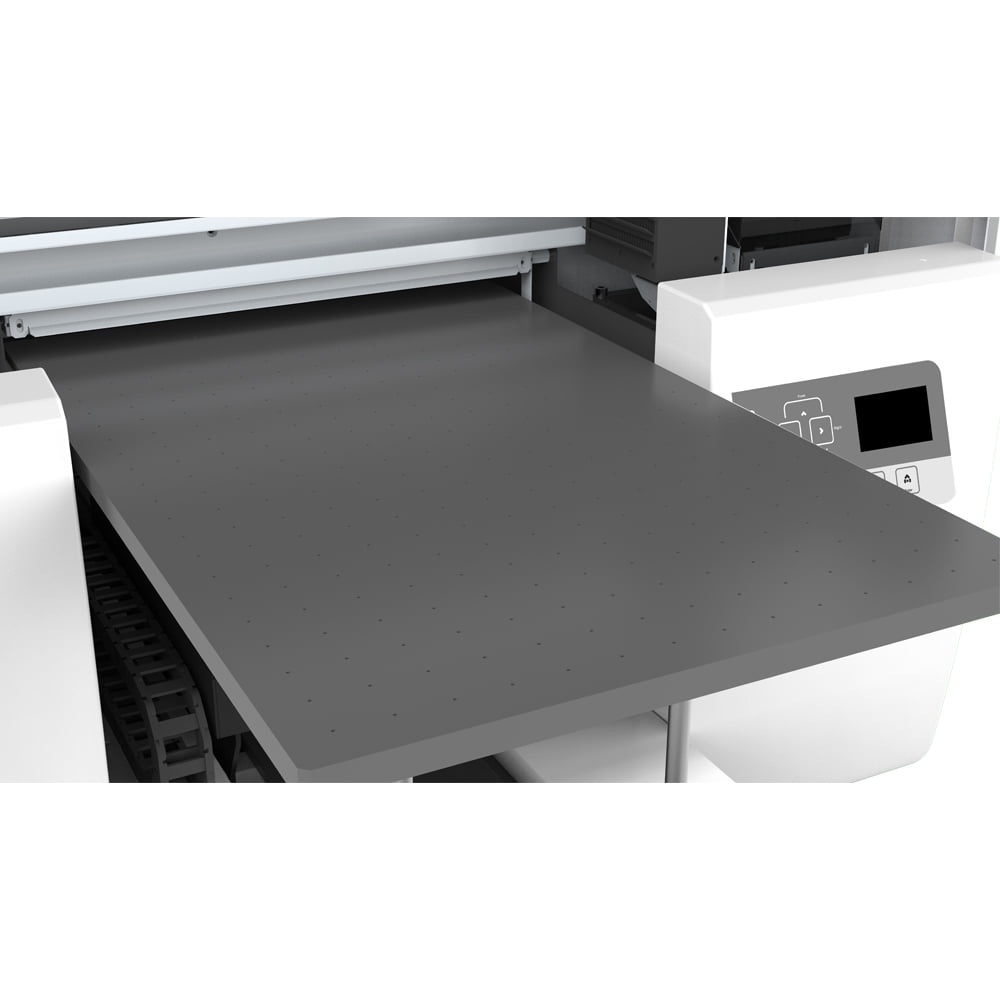

- High precision lifting vacuum table - the flatness can be controlled within 0.1mm.
| Brand | H-E |
|---|---|
| Printing tech | Inkjet |
| Printer functions | |
| Mono color | Color |
| Paper size | 39.37" x 35.51" x 23.31" |
| Maximum print resolution | 1200 dpi |
| Maximum scan paper size | 11.69in x 16.53in |
| Maximum print width | 11.69 in |
| Maximum print length | 16.53 in |
| Inputs & outputs | Network cable |
| Color | white |
| Assembled product dimensions (l x w x h) | 44.09 x 40.16 x 30.71 Inches |
| Assembled product weight | 392.1 lb |
| Power type | Corded Electric |
| Has written warranty | No |
| Ink container type | Printhead |
